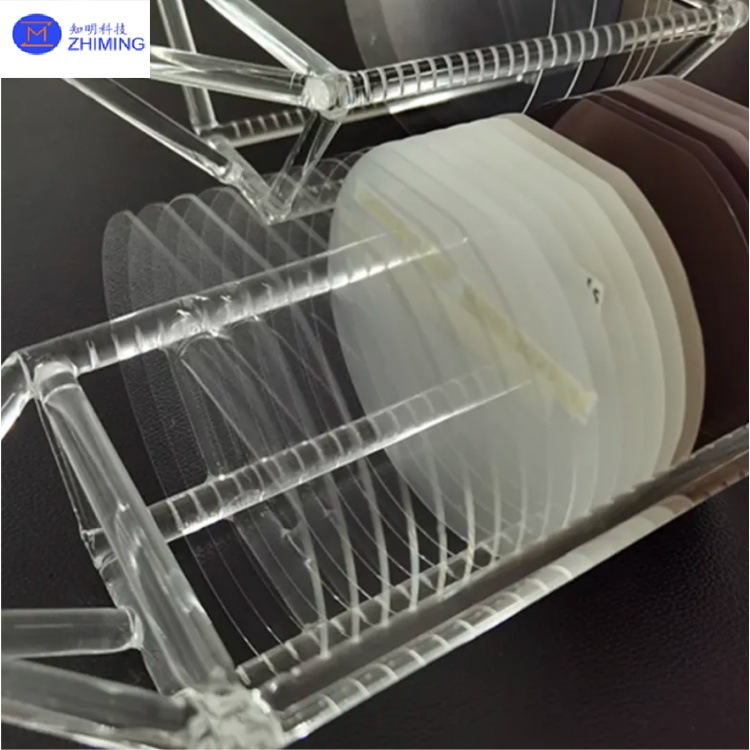

3inch 4inch 6inch Lithium Niobate Single Crystal Thin Film LNOI
Wafer <110> <100> <001>
Lithium niobate has excellent electro-optical, nonlinear, and
piezoelectric properties, and integrated photonics devices based on
lithium niobate thin films (LNOIs) on insulators have been widely
developed with the help of advanced micro-nano processing
techniques. In the future, high-performance LNOI materials will
support the further development of LNOI-based micro-nano optics,
integrated photonics, and microwave photonics. The preparation of
high-performance LNOI materials will be an important step in the
industrial application of lithium niobate optoelectronic devices.
Features
- Nonlinear optical properties: Lithium niobate (LiNbO₃) has
excellent nonlinear optical properties, capable of generating
second harmonics (SHG) and optical parametric amplification (OPA).
- Electro-optic effect: The material has a significant
electro-optical effect, which can change its refractive index under
the action of an electric field, and is widely used in modulators
and optical switches.
- Acousto-optic effects: Lithium niobate wafers are sensitive to
sound waves and can be used to make acousto-optic modulators and
filters.
- Wide spectral range: Suitable for a wide spectral range from
ultraviolet to near-infrared, suitable for a wide range of laser
applications.
- Good thermal stability: Maintains good performance in
high-temperature environments, making it suitable for harsh working
conditions.
Technical Parameters
| Properties (LiTaO3) | |
| Transmission Range (50% of total transmission) | 0,275 - 5,25 µm (thickness 8 mm) |
| Refractive Index | no = 2,139, ne = 2,139 @633 nm |
| Reflective Loss | 13,17%@0,633 µm |
| Reststrahlen | |
| Density | 7.4564 g/cm3 |
| Melting Point | 1650°C |
| Molecular Weight | 235,89 |
| Thermal Conductivity | 4,6 W/m·K ; 8,78 W/m·K |
| Heat Capacity | 424 J/(K·kg) |
| Thermal Expansion | |
| Hardness (Mohs) | 750 |
| Young`s Modulus | |
| Shear Modulus | |
| Bulk Modulus | |
| Rupture Modulus | |
| Elastic Coefficient | C11 = 230; C12 = 42; C13= 79; C14= -11; C33= 276; C44 = 95,9 GPa |
| Dielectric Constant | 41-53 @298K |
| Solubility in Water | unsoluble |
| Crystal Structure | Single crystal, synthetic |
| Crystal Type | trigonal, a = 5,15 Å c = 13,77 Å nbsp] |
| Cleavage Planes | no cleavage |
| Poisson Ratio | |
| Application | electro optic Q-switch, integrated optical substrate, sensor,
frequency converter |
| Remarks | stoichiometric or congruent |
Applications
1. Lasers: used for the modulation and frequency multiplication of
laser diodes and solid-state lasers.
2. Optical communication: It is used as a modulator and optical
switch in optical fiber communication to improve data transmission
efficiency.
3. Sensors: Used in the manufacture of highly sensitive light
sensors and MEMS devices.
4. Imaging equipment: used in imaging systems for optical
interferometers and imaging sensors.
5. Quantum optics: as an important optical component in the field
of quantum computing and quantum communication.
Our services
1. Factory direct manufacture and sell.
2. Fast, accurate quotes.
3. Reply to you within 24 working hours.
4. ODM: Customized design is avaliable.
5. Speed and precious delivery.
