    Sapphire Tubes Al2O3 Tubes Pure Transparent High Hardness Customized Tubes Optical Application

    Ask Lasest Price
    Brand Name : ZMSH
    Model Number : Sapphire Tubes
    Payment Terms : T/T
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

    Sapphire Tubes Al2O3 Tubes Pure Transparent High Hardness Customized Tubes Optical Application

    Sapphire Optical Tubes, Al2O3 Single Crystal Tubes, Sapphire Optical Glass Tubes, Sapphire Optical Rods, Sapphire Optical Stick, Al2O3 Single Crystal Glass Tubes, Optical Glass pipes By Sapphire, Sapphire Optical Tubes Pipes



    Sapphire Optical Tubes Feature

    + allow to be customized by design artwork

    + made by synthetic sapphire (99.999%Al2O3)

    + high-hardness 9 Mohs, outstanding scratch resistance and chemical stability

    + great transmittance, about 80%-90% in the visible light spectrum
    (approximately 400-700 nm).

    + widely used for high-temperature, chemical-resistant, and optical applications


    Description of Sapphire Optical Tubes

    The sapphire tube is a high-performance material pipe made of single-crystal sapphire with excellent physical and chemical properties.

    Sapphire (aluminium oxide single crystal) has extremely high hardness, second only to diamond, and has strong wear resistance and scratch resistance.

    It is widely used in fields that require high durability.

    Sapphire tubes also have excellent high-temperature and chemical corrosion resistance and can maintain stability in extreme environments.

    This makes sapphire tubes important in high-temperature equipment, optical instruments, medical equipment and other fields.

    In addition, the high light transmittance of sapphire makes it excellent in optical applications, especially in the ultraviolet and infrared ranges and can transmit light of specific wavelengths without being affected.

    Sapphire tubes are also widely used in precision manufacturing, aerospace, and semiconductor industries, and are indispensable key components in many high-tech fields.



    Details of Sapphire Optical Tubes


    Product NameSapphire Optical Tubes
    Hardness9 Mohs
    Melting Point2,050°C (3,722°F)
    Density3.98 g/cm³
    Thermal Conductivity25 W/m·K at 20°C
    OD/ID/LengthCustomized
    Refractive Index1.76 at 589 nm
    Optical Transparency5.3 × 10⁻⁶ /°C
    Electrical Resistivity> 10¹⁴ Ω·cm
    Poisson's Ratio0.25

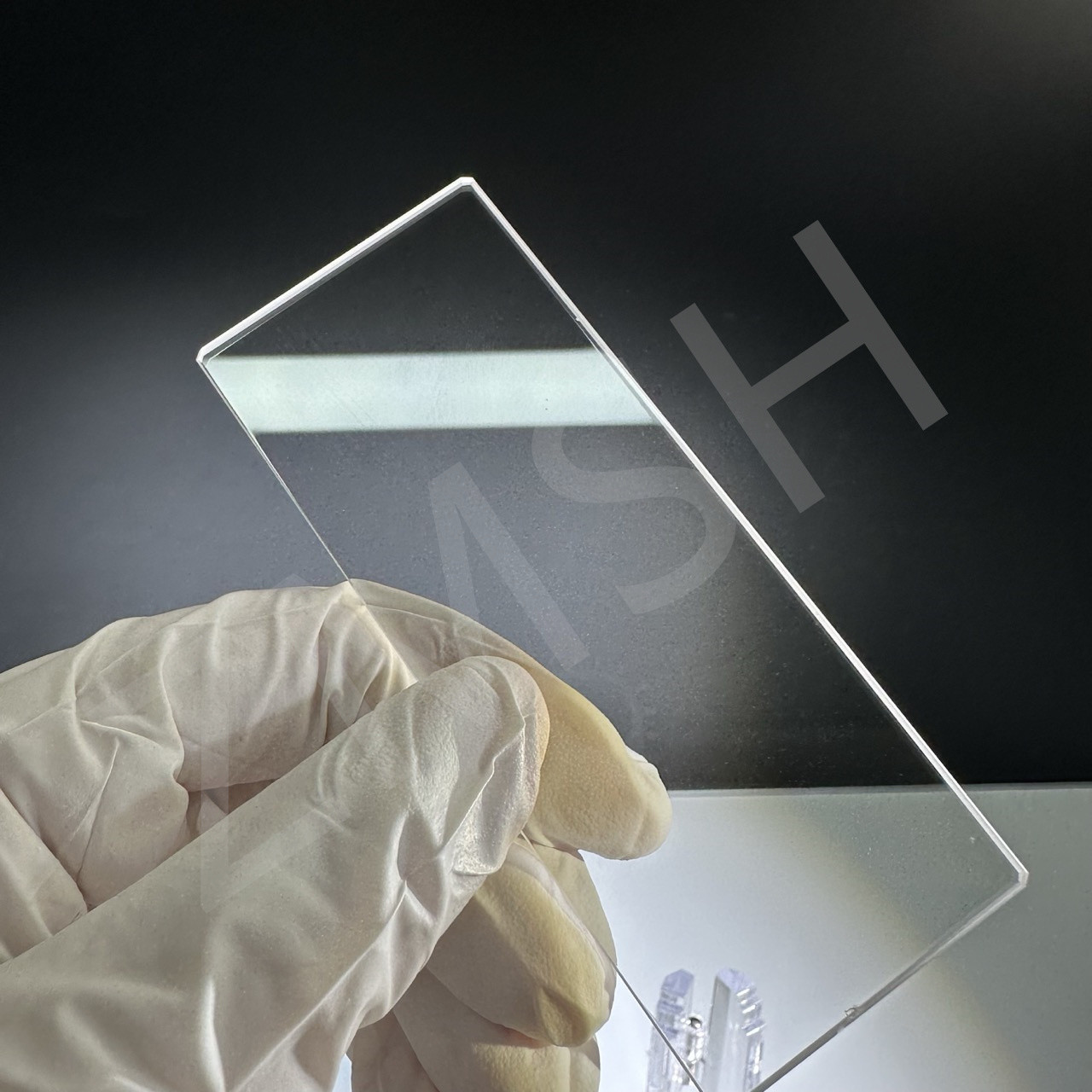

    More samples of Sapphire Optical Tubes


    *We accept customized one, please feel free to contact us about your requirements.




    About us and the packaging box

    About us
    Our enterprise, ZMSH, specialises in the research, production, processing, and sales of Semiconductor substrates and optical crystal materials.
    We have an experienced engineering team, management expertise, precision processing equipment, and testing instruments, providing us with extremely strong capabilities in processing non-standard products.
    We can research, develop, and design various new products according to customer needs.
    The company will adhere to the principle of "customer-centred, quality-based" and strive to become a top-tier high-tech enterprise in the field of optoelectronic materials.
    About packaging box
    Devoting to assisting our customers, we use wafer box to package.
    We have 2inch, 3inch, 4inch, 6inch, 8inch and 12inch box.
    *Here are some pictures of these.


    Products Recommend

    1. Optical Fused Silica Quartz Tube SiO2 Crystal Material With Customized Hole Shape

    Sapphire Tubes Al2O3 Tubes Pure Transparent High Hardness Customized Tubes Optical Application


    2.Sapphire Optical Windows Glass Al2O3 High-Performance High Purity Transparent Polished Winodws

    Sapphire Tubes Al2O3 Tubes Pure Transparent High Hardness Customized Tubes Optical Application


    FAQ

    1. Q: How do you produce sapphire tubes?

    A: We use Ky method and EFG method to manufacture, while different methods are suitable for different environments.


    2. Q: Compared with the quartz tubes, what is the advantage of sapphire?

    A: Compared with quartz tubes, sapphire tubes are much harder, much better performance and they can be used in harsh situations due to their higher temperature resistance and scratch resistance.
