MgO wafer, Magnesium Oxide Wafer, MgO Substrate, Magnesium Oxide
Substrate, <100>, <110>, <111>, 1inch MgO, 2inch
MgO, 3inch MgO, MgO monocrystalline Substrate
Character of the MgO
- use MgO Monocrystal to make
- support customized ones with design artwork
- high melting point, high thermal conductivity
- cubic crystal structure, NaCl-type structure
- widely used in high-tech areas, like high-temperature
superconductors
More details of the MgO wafer
Magnesium oxide (MgO) is a superior choice for monocrystalline
substrates, extensively used in the fabrication of ferroelectric,
magnetic, optical, and high-temperature superconducting thin films.
MgO stands out for its low dielectric constant and minimal loss in
the microwave frequency range, making it an ideal material for
high-performance applications.
The ability to produce large-area substrates, including those with
2 inches and beyond diameters, solidifies MgO’s role as a crucial
substrate in the high-temperature superconducting film industry.
This material is particularly beneficial in the development of
high-temperature superconducting microwave filters and other
essential devices for mobile communication systems.
Our process involves using high-purity MgO crystals, grown to
approximately 2"x2"x1", which are then refined through a
specialized chemical mechanical polishing technique.
This method yields substrates of exceptional quality with
atomically smooth surfaces, all while maintaining
cost-effectiveness.
More details of the MgO wafer
| Crystal structure | Cube |
| Lattice constant | a = 4.216Å |
| Growth method | Arc France |
| Mp | 2850 °C |
| Density | 3.58g/cm3 |
| Mohs hardness | 5.5 Mohs |
| Thermal expansion coefficient | 12.8 × 10 -6 / °C |
| Permittivity | 9.8 |
| Optical transmission | > 90% @ 200 ~ 400 nm> 98% 500 ~ 1000 nm |
Crystal cleavage plane | <100> |
*Additionally, if you have other requirements like orientation
<110> or <111> or size needs, we can customized one.

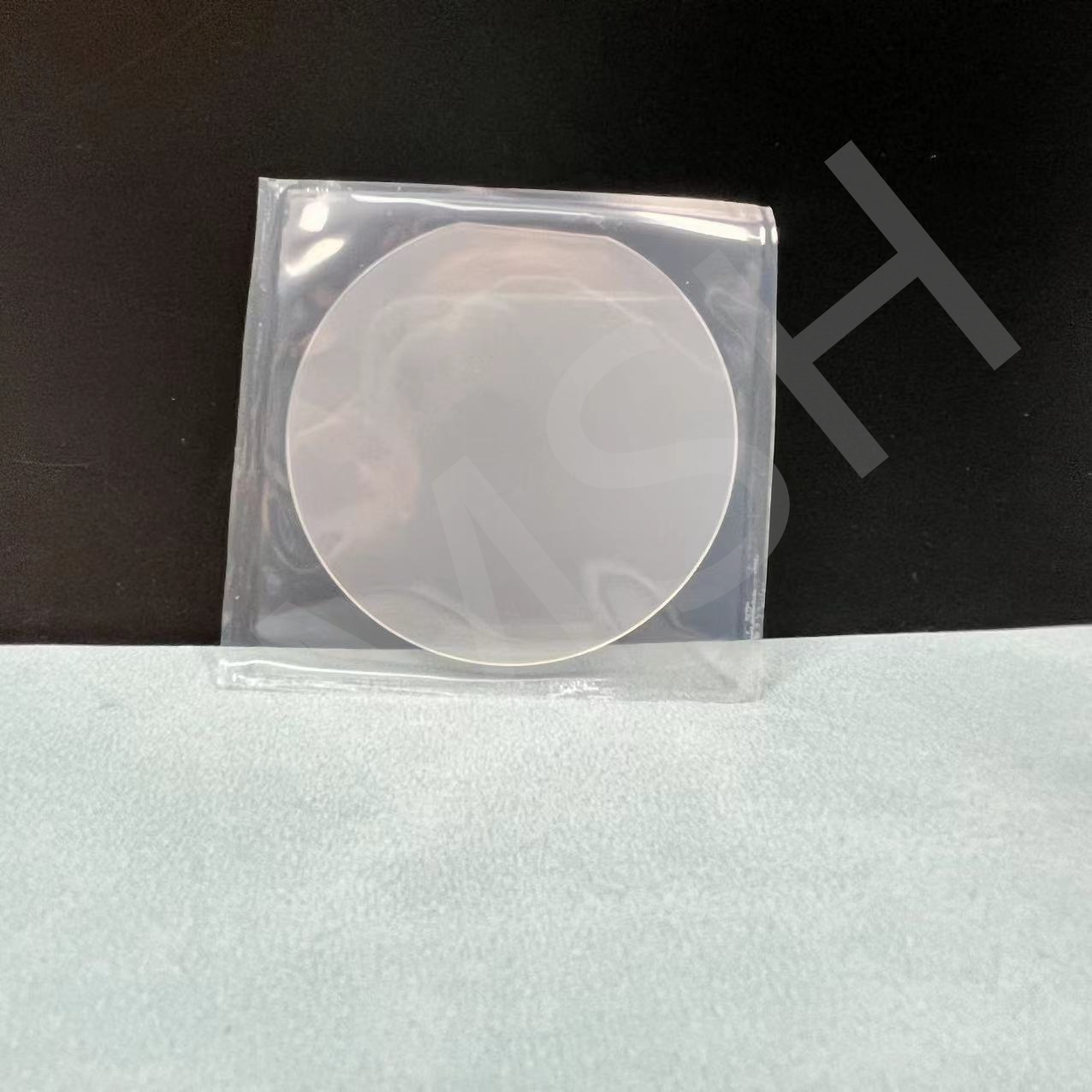

Other pictures of the MgO wafer
About us and the packaging box
About us
Our enterprise, ZMSH, specialises in the research, production,
processing, and sales of Semiconductor substrates and optical
crystal materials.
We have an experienced engineering team, management expertise,
precision processing equipment, and testing instruments, providing
us with extremely strong capabilities in processing non-standard
products.
We can research, develop, and design various new products according
to customer needs.
The company will adhere to the principle of "customer-centred,
quality-based" and strive to become a top-tier high-tech enterprise
in the field of optoelectronic materials.
About packaging box
Devoting to assisting our customers, we use wafer foam plastic to
package.
Here are some pictures of these.
FAQ
1. Q: Can MgO wafers be doped?
A: Yes, MgO wafers can be doped with various elements to modify
their properties, such as altering their optical or electrical
characteristics. However, undoped MgO is most commonly used in many
applications.
2. Q: Are there any specific environmental considerations when
using MgO wafers?
A: MgO wafers are chemically stable and resistant to most
environmental factors; however, they should be kept in a controlled
environment to prevent surface contamination or moisture
absorption, which could affect their performance in precision
applications.
