4" Gallium Nitride Wafer

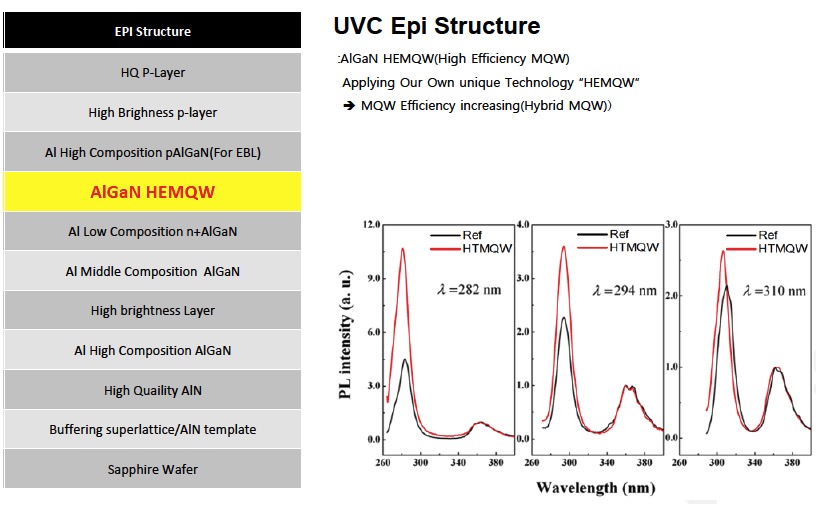

UVC LED EPI Substrates layer 2inch ,4inch Gallium Nitride AlN template wafer on sapphire or sic substrates,

HVPE Gallium Nitride wafer,AlN templates

III-Nitride(GaN,AlN,InN)

Forbidden band width (light emitting and absorption) cover the ultraviolet, visible light and infrared.

Product

Aluminum nitride (AlN) film

Product Description:

AllN Epitxial proposed model saphhire hydride vapor phase epitaxy (HVPE) method. Aluminum nitride film is also cost-effective way to replace the aluminum nitride single crystal substrate. Branch Crystal sincerely welcome your inquiry!

Technical parameters:

Size	50mm ± 2mm
Sapphire substrate orientation	c-axis (0001) ± 1.0deg
Macro defect density	<5cm-2
Available surface area	90%
Surface treatment before	As Grown Epi-ready
Container	Single Chip

Specifications:

10x10x0.5mm, 10x10x1mm, dia2 "x1mm;

Can be customized according to customer demand special orientation and size.

Standard Packaging:

1000 clean room, 100 clean bag or single box packaging

Specifications:

	4” AlN Templates	2-4inch size also ok
Item	AlN-T
Dimensions	Ф 100±0.3mm
Substrate	Sapphire, SiC, GaN
Thickness	1000nm+/- 10% (AlN thickness)
Orientation	C-axis(0001) ± 1°
Conduction Type	Semi-Insulating
Dislocation Density	XRD FWHM of (0002) < 200 arcsec.
	XRD FWHM of (10-12) < 1000 arcsec
Useable Surface Area	> 80%
Polishing	Standard: SSP
	Option: DSP
Package	Packaged in a class 100 clean room environment, in cassettes of 25pcs or single wafer containers, under a nitrogen atmosphere. or single cassettes.

Other size aslike 5x5mm,10x10mm,2inch ,3inch also can be customized.
