monocrystalline Al2O3 sapphire step lens sapphire glass windows

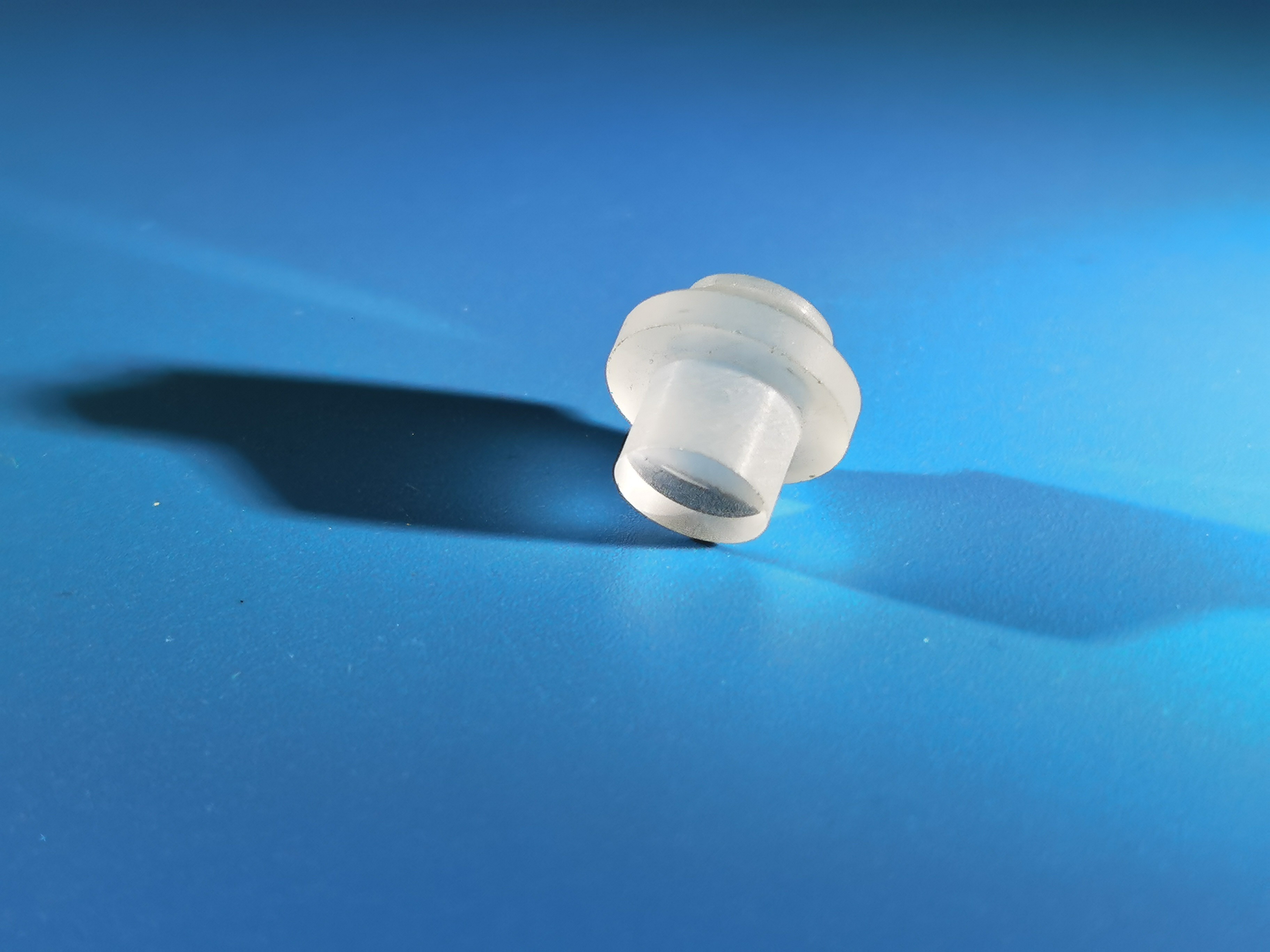

Sapphire step windows are either windows or plates ground with a
step into the edge or length of the glass. This step can allow for
rings or sealant for useful for sealing into housing or mechanical
assembly. The step windows are made from a wide range of materials
including BK7, Fused Quartz, Borosilicate and Sapphire. In fact all
materials can be engineered in this way subject to thickness.
Additional bevels can be ground to the step for assembly and
handling. Angles can also be produced to create angled cones or an
angled ground step
ZMSH stock step windows to various designs and can custom make them
to additional shapes with AR coatings.
- Sapphire physical parameter
Sapphire material has high hardness (Moths 9), high melting point
(2050℃) and good thermal stability, with wear resistance, corrosion
resistance characteristics. And in the infrared spectrum, it has a
high transmission rate, can be used in the wavelength range of 200
nm - 450 nm.
Material:
UV Fused Silica, Borosilicate, Float glass (plate finish) &
Sapphire
Dimension Tolerance:
+/-0.05mm
Thickness Tolerance:
± 0.03mm
Edge Finish:
Fine Ground & chamfered
Surface Flatness:
3-5 Fringes (@633nm)
Surface Quality:
60/40 Scratch/Dig
ZMSH Optics ‘C’ cut axis
Sapphire windows and plates are cut to the optical axis perpendicular to the plane of the
crystal, this is known as ‘C’ cut, ‘Z’ cut or 0° plane cut
Sapphire. This material is better suited for highly optical and
mechanical applications due to random being moderately
birefringent. Extremely hard and has a good transmission from the
ultraviolet to the mid infrared ideal for optical and high
demanding mechanical applications. These windows and plates are
used in analytical, medical instruments, camera systems, optical
instruments and industrial applications.
Our Optics stock Sapphire windows & plates ‘C’ cut axis are stock
in many sizes with the option to custom make to a desired
specification including AR coatings.
Related Sapphire step window Detail
RAQ
: What are your main products?
A: Infrared optics
(silicon,Germanium,,ZnSe,ZnS,MgF2,BaF2,CaF2,Sapphire)
Q: How long is your delivery time?
A:usually 15 working days
Q: Do you provide samples ?
A: Of course,we can offer the samples for customer to check the
quality
Q:What is your MOQ ?
A:Depends on the products,for normal size 1piece is ok
Q: What is your terms of payment ?
T/T,L/C,VISA,Paypal,Alipay,westunion
