special shape sapphire optical lens with hole , Al2O3 single
crystal glass, optical glass sapphire wafer,sapphire glass plate

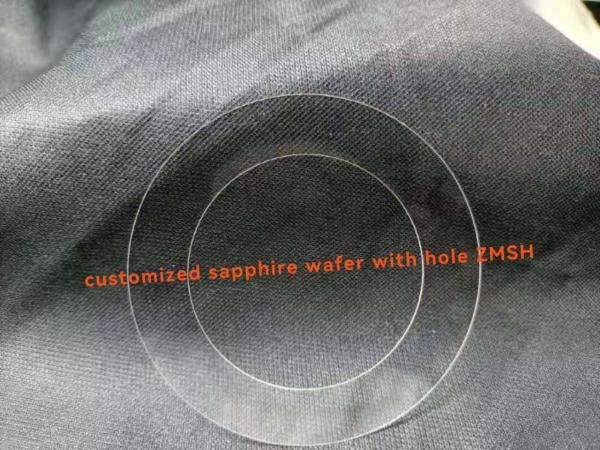

dia76.2mm sapphire glass ring double side polished thickness0.4mm
Merit from Comparison with other material optical lens
1-Thinner and Stronger than Standard Glass Windows Because
Hradeness9.0
2- can use in Close to 2000° temperature environment
3-Transmits Wavelengths Ranging From UV to Mid-Infrared
4-Features Extreme Surface Hardness and Chemical Resistance
----------------------------------------------------------------------------
We can supply professional customized service in time and provide
cooperation and support of new
product development and technology appliance.
Professional Customized Optical sapphire window sapphire lens and
sapphire sphere
Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire
Rods, Sapphire Tubes,
Rubysapphire wafer, dome sapphire, Sapphire insulation Film,
Sapphire ball lens, Sapphire/
ruby ball Professional Customized Optical sapphire window sapphire
lens and sapphire sphere
Sapphire process Capacity
Sapphire Windows and Sapphire lenses General Specifications
Diameter 0.2-300mm or customization
Diameter tolerance +/-0.1mm or +/-0.02mm
Thickness 0.10-100mm
Thickness tolerance ± 0.1mm or +/-0.02mm
Surface quality (scratch & dig) 60/40, 40/20 or better
Surface accuracy λ/10, λ/2, λ
Clear Aperture >85%, >90%
Parallelism +/-3' ,+/-30''
Bevel 0.1~0.3mm×45 degree
coating AR, BBAR or upon customer request( UV, VIS, IR)
and we also offer 1-8inch size sapphire ingot.
Material - High Purity Monocrystalline Sapphire (99.996%)
No Grain Boundaries, Twins, Lineages or Crack
Orientation:
C –Plane (0001) A –Plane (11-20)
R –Plane (10-12) M –Plane (10-10)
Diameter Up to 380 mm
Length Up to 200 mm
Surface Finish As Cored / Fine Ground
Available Option Primary Orientation Flat
Customer specification also available!
process for sapphire wafer ＆ lens
crystal—>confirm orientation --> customized size ingot-->
cut top and tail--> repair diameter—>
wire cut-->chamfer-->grind lap-->anneal--> fine
lapped-->polished to customized size-->check
Products detail:
Shipment ＆ package
FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we
could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 5-20pcs.
(2) For customized products, the MOQ is 20-30pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the
order.
For customized products: the delivery is 2 or 3 weeks after you
place the order.
Q: Do you have standard products?
A: Our standard products in stock.
