Green Sapphire Laser Crystals For laser rods and Wristwatch
Customized Size Laser Optical Yellow Sapphire Crystal For laser
rods and Watch Glass Case, Titanium Ti Ruby Sapphire Laser Crystals
For laser rods and Watch Glass Case, Green Sapphire Laser Crystals For laser rods and Wristwatch
Feature
- Large gain-bandwidth
- Very large emission bandwidth
- Excellent thermal conductivity
- Short excited-state lifetime (3.2 us)
- High saturation power
- Relatively high laser cross-sections
- High damage threshold
- Strong Kerr effect
- Wide possible pump wavelengths
Regarding the color of sapphire crystal
The main component of sapphire is alumina (Al2O3). The simple
alumina single crystal is transparent and colorless, but it
penetrates into the growing sapphire by different color elements,
thus making the sapphire crystals different colors.
When artificially doped with iron ions (Fe3+) and titanium ions
(Ti+), the crystals will appear blue sapphire (Blue Sapphire).
When the crystal is doped with iron (Fe3+) and cobalt (Co2+),
vanadium (V3+) the crystal will appear green.
( Green Sapphire)
When the crystal contains chromium ions (Cr3+), the crystal will
appear red and become to be Ruby.
When the crystal contains nickel ions (Ni3+), the crystal will
appear yellow and become Yellow Sapphire.

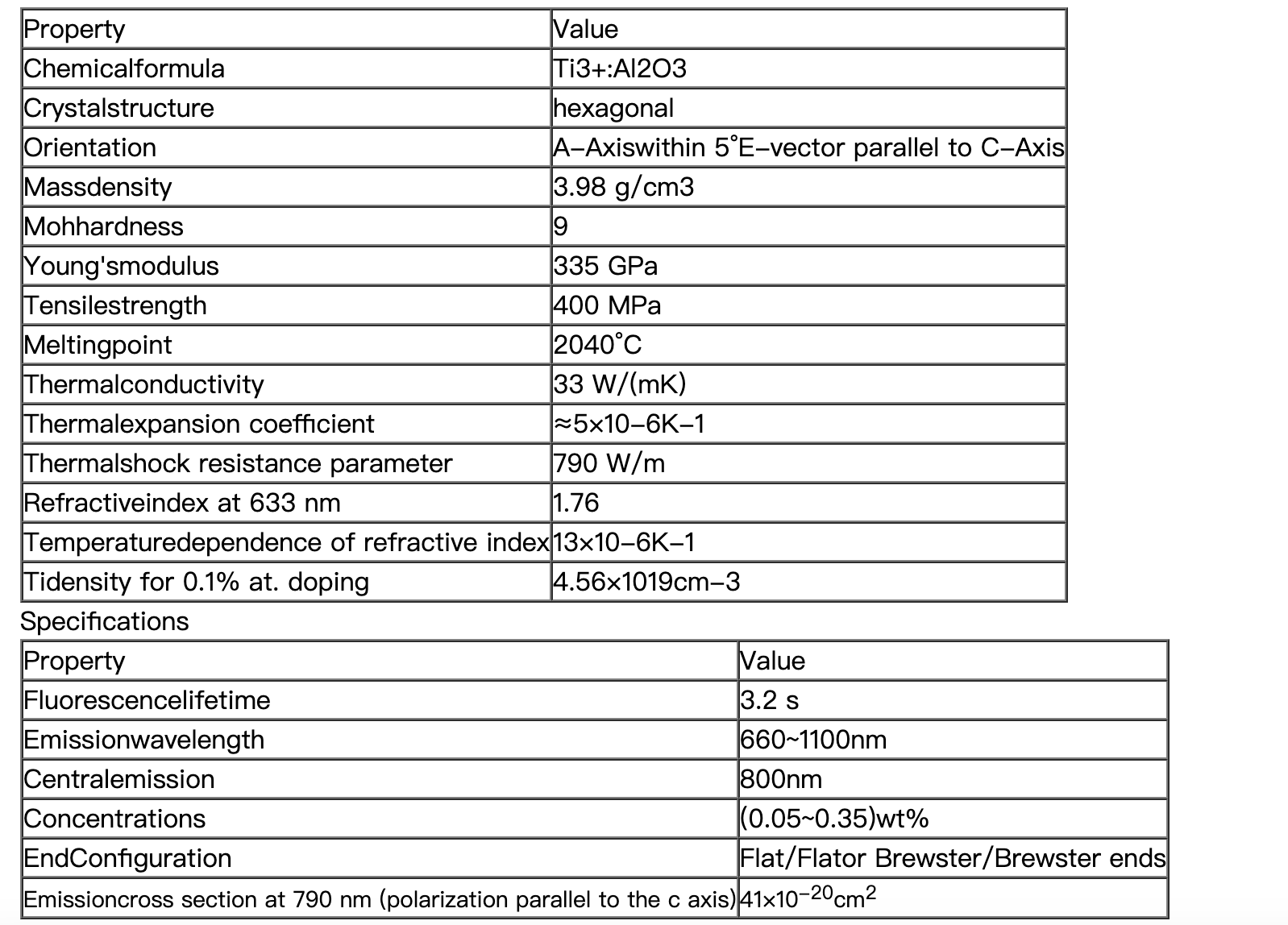

Product specification
Application
- Laser spectroscopy
- LIDARs
- Medial laser

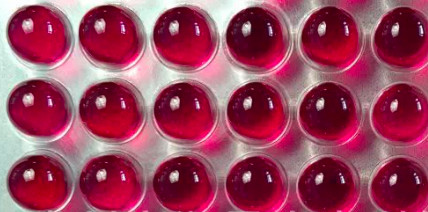

Product display
