Custom Made High Precision Transparent Sapphire Glass Optical Windows

SHANGHAI FAMOUS TRADE CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Custom Made High Precision Transparent Sapphire Glass Optical Windows from wholesalers

    Buy cheap Custom Made High Precision Transparent Sapphire Glass Optical Windows from wholesalers
    • Buy cheap Custom Made High Precision Transparent Sapphire Glass Optical Windows from wholesalers
    • Buy cheap Custom Made High Precision Transparent Sapphire Glass Optical Windows from wholesalers
    • Buy cheap Custom Made High Precision Transparent Sapphire Glass Optical Windows from wholesalers

    Custom Made High Precision Transparent Sapphire Glass Optical Windows

    Ask Lasest Price
    Brand Name : ZMSH
    Price : by case
    Payment Terms : T/T, L/C
    Supply Ability : 10000pcs/months
    Delivery Time : 10-30 days
    Model Number : customized
    Certification : Cz/ Rohs/ GSG
    • Product Details
    • Company Profile

    Custom Made High Precision Transparent Sapphire Glass Optical Windows

    Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.

    Product details


    Product name
    Custom-made High Precision Transparent Sapphire Glass Optical Windows
    Diameter Tolerance
    +0.0/-0.05mm
    Center Thickness Tolerance
    ±0.05 mm
    Focal Length Tolerance
    ±1%
    Surface Quality
    80/50,60/40, 40/20 or better
    Material
    Optical glass(K9/BK7/JGS1,Etc.)
    Clear Aperture
    >90%
    Centering
    <3 arc min
    Coating
    AR coating or custom made
    Bevel
    Protective bevel as needed

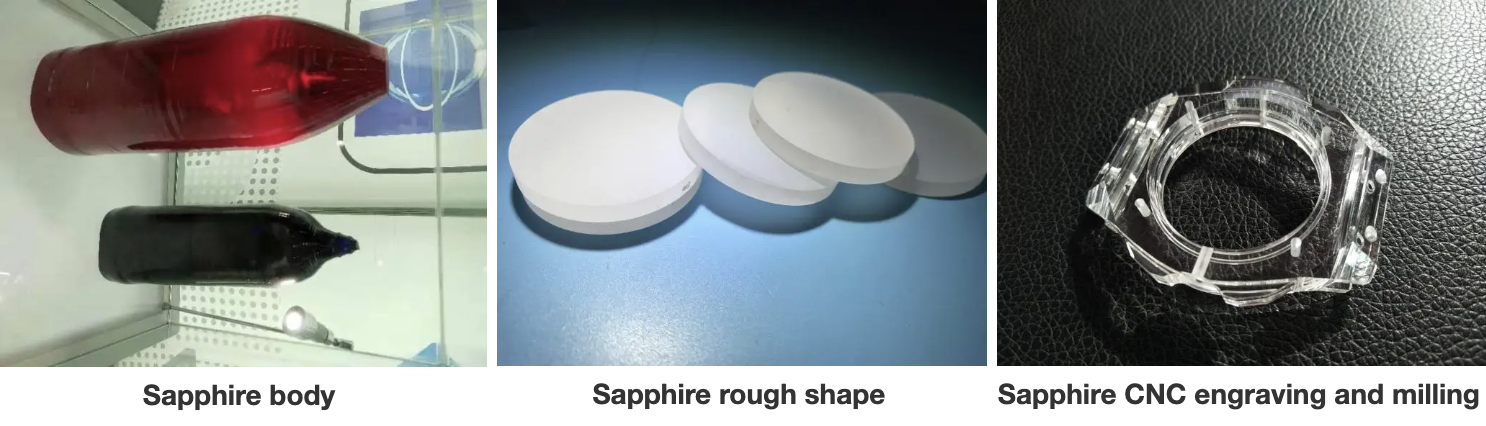

    Product display

    . Custom Made High Precision Transparent Sapphire Glass Optical Windows


    Company profile:


    China SHZM conpany grows the sapphire single crystal by KY method,we can supply sapphire ingot(2inch,4inch,6inch,8inch),sapphire wafer(single/double side polishing),sapphire block,all kinds of sapphire optical window(applied to optical equipment,industry camera, cell phone, watches and other special optical components),if you have any requirements,

    please feel free to contact us,looking forward to your cooperation.


    Related products:


    Why choose us:


    ● material of the highest possible quality
    ● competitive prices

    ● source factory

    ●customized service
    ● deep know-how and individual advice


    FAQ:

    Q: What's your MOQ?

    A: (1) For inventory, the MOQ is 3pcs. if 5pcs it's better.

    (2) For customized products, the MOQ is 50pcs up.


    Q: What's the delivery time?

    A: (1) For the standard products

    For inventory: the delivery is 5 workdays after you place the order byFOB shanghai .

    For customized products: the delivery is 2 -4 weeks after you order contact by FOB SHAGNHAI.
