6 inch synthetic sapphire Bf33 0.725mm Wafer for GaAs
Features for 6 in Sapphire Wafer Single or Double Side Polish
- Material: High purity single crystal Al2O3, sapphire wafer.
- Dimension: 150 mm +/- 0.05 mm, 6 inch
- Thickness: 1300 +/- 25 um
- Orientation: C plane (0001) off M (1-100) plane 0.2 +/- 0.05 degree
- Primary flat orientation: A plane +/- 1 degree
- Primary flat length: 47.5 mm +/- 1 mm
- Total Thickness Variation (TTV): <20 um
- Bow: <25 um
- Warp: <25 um
- Thermal Expansion Coefficient: 6.66 x 10-6 / °C parallel to C axis,
5 x 10-6 /°C perpendicular to C axis
- Dielectric Strength: 4.8 x 105 V/cm
- Dielectric Constant: 11.5 (1 MHz) along C axis, 9.3 (1 MHz)
perpendicular to C axis
- Dielectric Loss Tangent (a.k.a. dissipation factor): less than 1 x
10-4
- Thermal Conductivity: 40 W/(m.K) at 20℃
- Polishing: single side polished (SSP) or double side polished (DSP)
Ra < 0.5 nm (by AFM). The reverse side of SSP wafer was fine
ground to Ra = 0.8 - 1.2 um.
- Laser Mark Series No. by needs
- Package:Vacuum-sealed containers with nitrogen backfill in a class
100environment
- Cleanliness :Free visible contamination

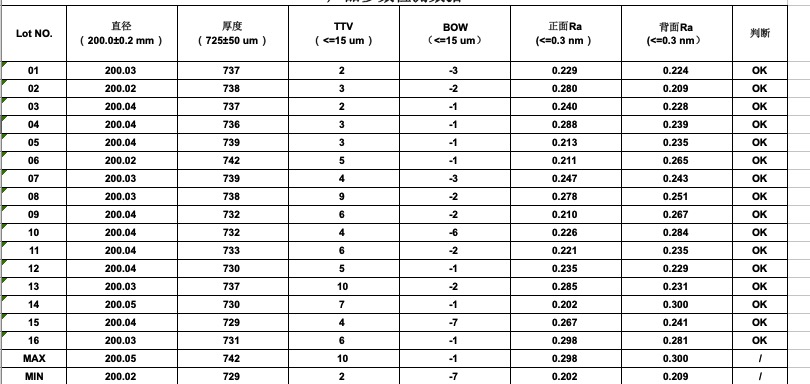

6 in Sapphire Wafer show

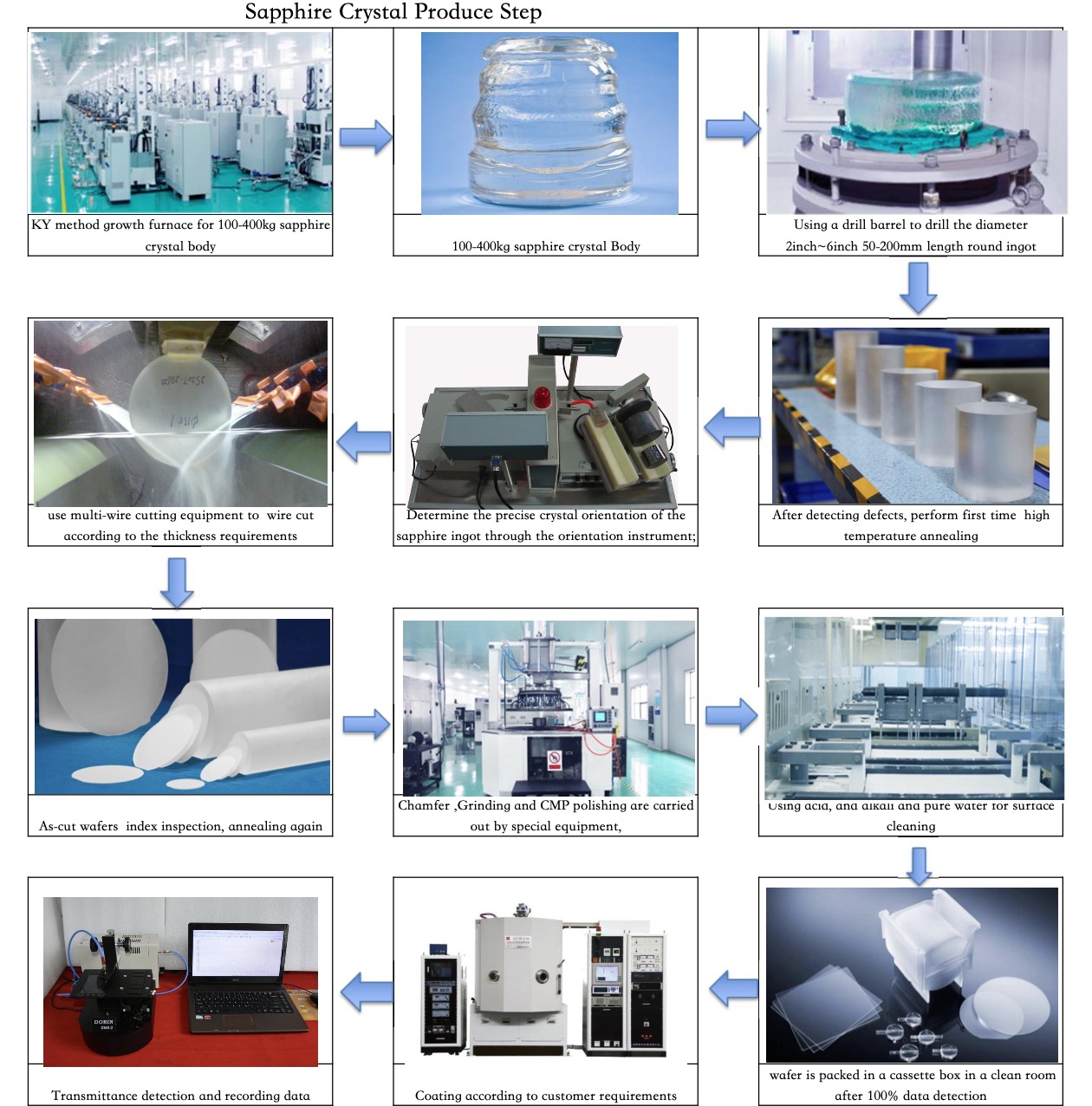

Produce step for saphire wafers
Sapphire crystal body--->get rough ingot in customized
axis--->cut tail＆ top off---->
repair diameter shape----> Grind OF surface--->( anneal
-->)wire
cut--->chamfer-->anneal--->lapped---polished---infection
Synthetic sapphire—sometimes referred to as sapphire glass—is
commonly used as a window material, because it is both highly
transparent to wavelengths of light between 150 nm (UV) and 5500 nm
(IR) (the visible spectrum extends about 380 nm to 750 nm, and
extraordinarily scratch-resistant.
The key benefits of sapphire windows are:
Very wide optical transmission band from UV to near-infrared,
(0.15–5.5 µm)
Significantly stronger than other optical materials or standard
glass windows
Highly resistant to scratching and abrasion
Extremely high melting temperature (2030 °C)
-------------------------------------------------------------------------------------------------------------------------------------------
We can supply professional customized service in time and provide
cooperation and support of new product development and technology
appliance.
Some other materials semi substrates also can be provided as like
sic, GaN,LaAlO3,LiTaO3 etc.
FAQ:
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 10pcs.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we
could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the
order.
For customized products: the delivery is 2 or 3 weeks after you
place the order.
Q: Do you have standard products?
A: Our standard products in stock.as like 4inch 0.65mm,0.5mm
polished wafer.
Q: How to pay?
A:50％deposit, left before delivery T/T,
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical
coating for your optical
components based on your needs.
