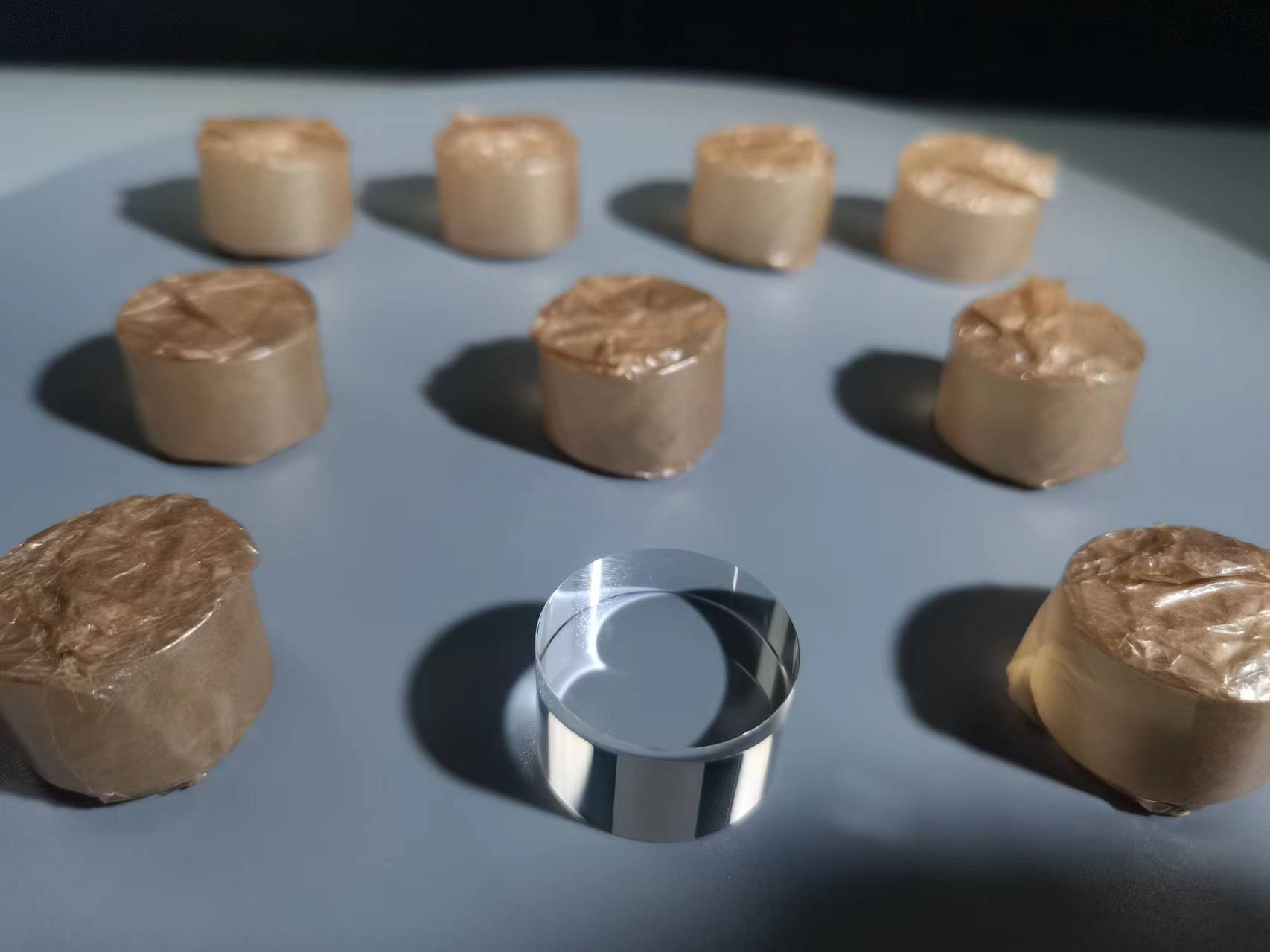

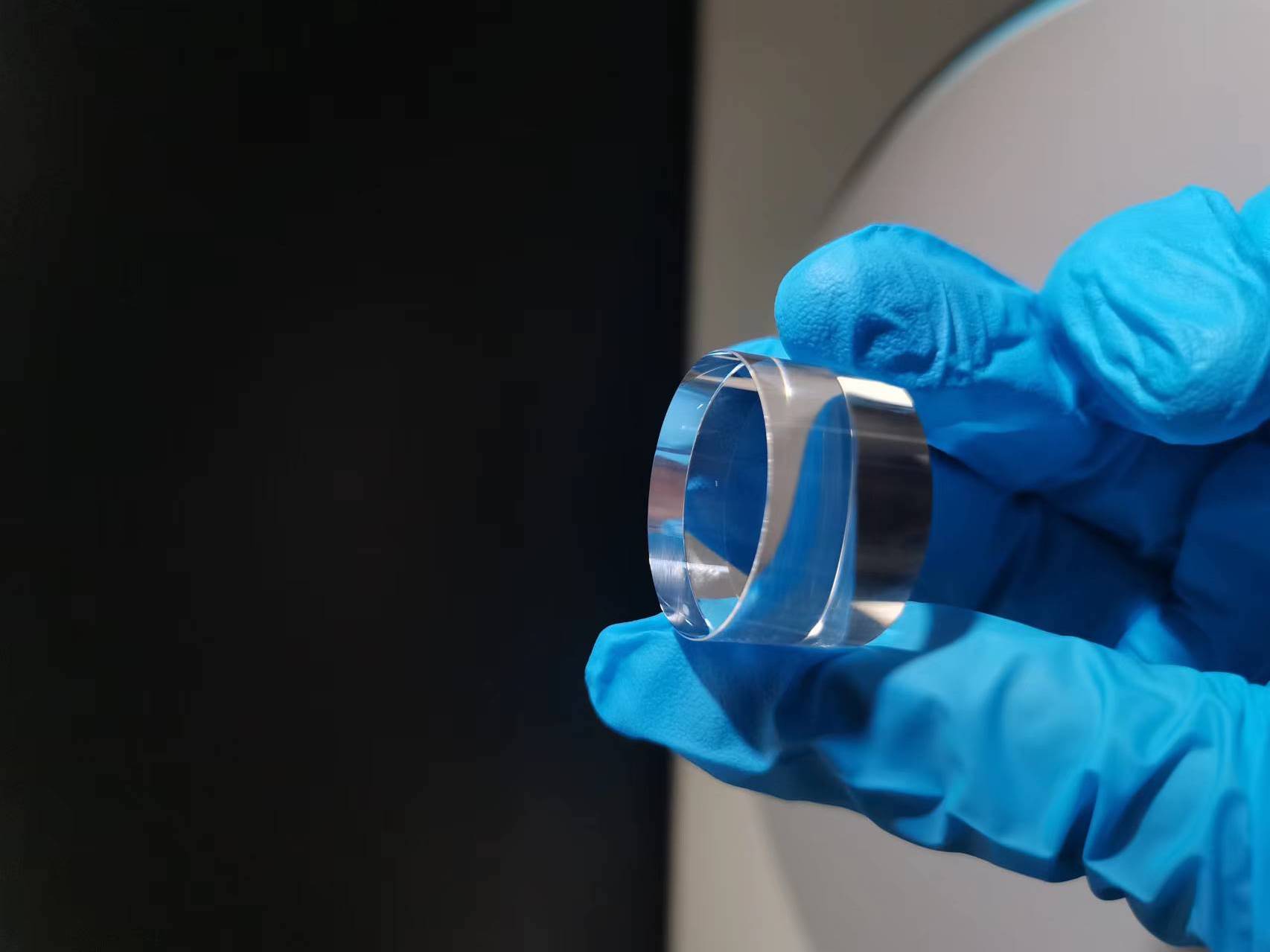

Customized Dia25.40* 15.00mm Cylindrical All Sides Polished
Sapphire Lens Optical Windows
Product features:
Sapphire Windows are highly resistant to extreme temperature and
pressure changes. These Windows are commonly used as viewing
Windows to see inside vacuum chambers or chambers containing
high-temperature plasma. Sapphire is a single crystal aluminum
oxide (Al2O3), with good chemical, mechanical and optical
properties: strong acid corrosion resistance, can be used in
corrosive environments; Surface resistance to scratch and wear.
Uncoated sapphires are transparent over a wide wavelength range
from 150 nm to 4.5 μm and are suitable for use in the ultraviolet
to mid-infrared bands. Sapphire is slightly birefringent, which may
cause a slight change in the polarization state of the transmitted
light. However, the sapphire window provided by Jingjing Technology
is the Z-axis section, and the C-axis of the crystal is parallel to
the optical axis of the system, and the birefringence effect of the
transmitted light is effectively eliminated. Jingjing Technology
provides high precision window pieces prepared by various substrate
materials, and also provides customized services for special size
and film system materials.
Specifications:
| Material | Sapphire Single Crystal/ Sapphire Lens |
| Diameter | 25.40mm |
| Thickness | 15.00mm |
| Orientation | C |
| TTV | <= 5um |
| Warp | <=5um |
| BOW | <=5um |
| Polishing | SSP, DSP |
| Size Provided | Customization |
| MOQ | 10pcs |
| Origin | Hubei, China |
| Sample | 10pcs |
| Packing | Customized Box |
| Shipping | FedEx, DHL, EMS, UPS |
| Application | Optical Windows |
Factory Introduction:
Jingjing Technology (Hubei) Co., Ltd. is a company engaged in
optoelectronic new materials, semiconductor materials and new
crystal materials; Superhard materials research and development,
production, sales of high-tech enterprises. Products are widely
used in consumer electronics, precision equipment, laser
communication, medical, environmental protection, high-end
instruments, instruments, aerospace, naval ships, weapons and other
fields. The company covers an area of 30 mu, building a factory
area of 15,000 square meters, office building of 3,000 square
meters, with a full set of equipment from raw material orientation,
cutting, shaping, grinding, chamfering, fine carving, fine
grinding, polishing, cleaning and inspection, as well as related
supporting testing equipment, end-to-end technology and production
capacity and related supporting, and has experienced engineering
and technical team. With its strong production capacity of
non-calibration products, we can research and develop design
solutions according to customer needs. The company's products
involve a wide range, a wide variety of products sold all over the
world. Adhering to the concept of "customer-centric,
employee-based, R&D as the core", the company has grown into a
high-tech enterprise in the field of new materials in China through
continuous integration.
Customization:
All kinds of lens.
Other Product:
Sappjire
windows:
FAQ:
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 5pcs up.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we
could help you ship them.
Freight is in accordance with the actual settlement.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the
order.
For customized products: the delivery is 2 or 3 weeks after you
place the order.
Q: Do you have standard products?
A: Our standard products in stock.as like 4inch 0.65mm,0.5mm
polished wafer.
Q: How to pay?
A:50％deposit, left before delivery T/T.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical
coating for your optical
components based on your needs.
