Sapphire Fiber 75um 150um 300um High Refractive High Power Laser Wide Wavelength Optical Communication

Product Description:

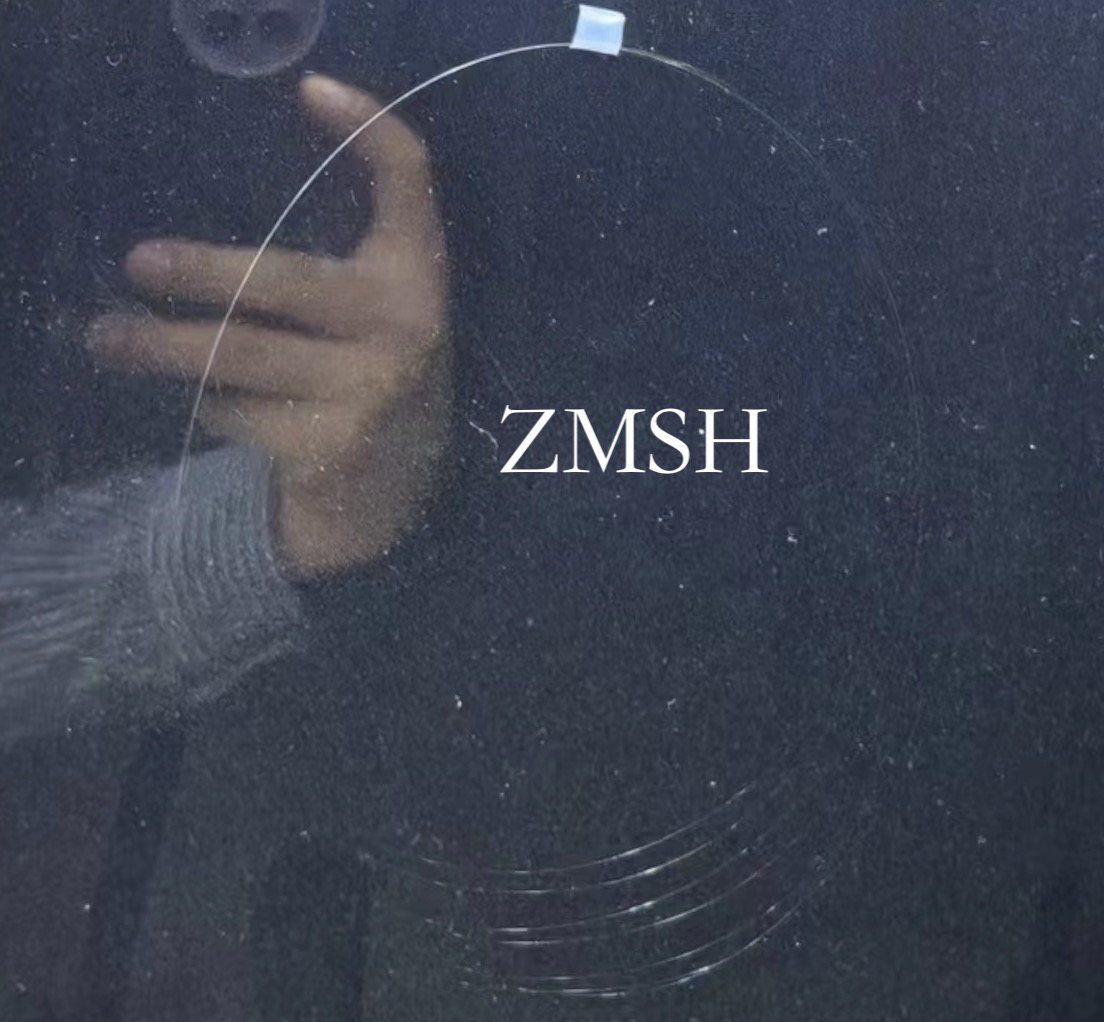

Sapphire fiber is a special type of fiber with the following advantages:

• High refractive index: Sapphire fiber has a very high refractive index, enabling it to effectively transmit optical signals and reduce signal loss.
• High threshold power density: Sapphire fiber can withstand high power density, making it suitable for high power laser and amplifier applications.
• Wide wavelength range: Sapphire fiber can operate in the visible and near infrared spectral range, suitable for a variety of optical applications.
• Low nonlinear effect: Sapphire fiber has low nonlinear effects, such as optical Kerr effect and self-phase modulation, enabling it to transmit high-quality optical signals.

Features:

Sapphire fiber material features include:

• High hardness: Sapphire is a very hard material with a score of 9 on the Mohs hardness scale, second only to diamond. This makes sapphire fiber with excellent mechanical strength and wear resistance.
• High refractive index: Sapphire fiber has a high refractive index, usually between 1.7 and 1.8. This allows optical signals to be transmitted efficiently within the fiber, reducing signal loss.
• Wide wavelength range: Sapphire fiber is suitable for the visible and near-infrared spectral ranges, usually between 400 nm and 2000 nm. This makes sapphire fiber useful in a variety of optical applications.
• Low nonlinear effects: Sapphire fiber has low nonlinear effects, such as optical Kerr effect and self-phase modulation. This means that it is able to transmit high-quality optical signals, reducing signal distortion and attenuation.
• Biocompatibility: Sapphire materials have good compatibility with biological tissues, so they are often used in medical applications. For example, it can be used in fields such as optical imaging, laser surgery and optical diagnosis.

Technical Parameters:

The technical parameters of sapphire fiber can vary according to different manufacturers and product models. The following are some examples of common sapphire fiber technical parameters:

• Diameter: usually between a few microns and hundreds of microns, common diameters include 50 microns, 100 microns, 200 microns, etc.
• Refractive index: Usually between 1.7 and 1.8.
• Loss: Usually in decibels/meters (dB/m) as a unit, indicating the loss of optical signals during transmission.
• Nonlinear coefficient: Usually m^2/W as a unit, indicating the nonlinear response capacity of the fiber.
• Wavelength range: refers to the wavelength range that the fiber can transmit, usually in the visible and infrared regions, the common range is 400 nm to 2000 nm.

Applications:

• Laser applications: Sapphire fiber can be used in high-power laser systems, such as laser cutting, laser welding and material processing.
• Optical sensors: Sapphire fiber can be used to manufacture highly sensitive optical sensors, such as temperature sensors, pressure sensors and strain sensors.
• Optical communication: Sapphire fiber can be used in short-range optical communication systems, such as high-speed communication inside data centers.
• Medical applications: Due to the high compatibility of sapphire fiber to biological tissue, it can be applied to medical imaging, laser surgery and optical diagnosis.

FAQ:

Q1: What brand name is the Sapphire Fiber?
A1: The Sapphire Fiber is made by ZMSH.

Q2: What's the diameter of the Sapphire Fiber?
A2: Thediameter of Sapphire Fiber is 35um, 100um, 200um.

Q3: Where is the Sapphire Fiber from?
A3: The Sapphire Fiber is from China.

Q4: Is the Sapphire Fiber ROHS certified?
A4: Yes, the Sapphie Fiber is ROHS certified.

Q5: How long Sapphire Fiber can I buy at 1 time?
A5: The minimum order quantity of the Sapphire Fiebr is 1m.
