| aterial | Sapphire(Al2O3) |
| Density(20°C) Kg/m3 | 3.98×103 |
| Crystal Structure | hexagonal |
| Crystal lattice constant | a=4.785Å c=12.991 Å |
| Mohs hardness | 9 |
| Melting Point | 2045°C |
| Boiling Point | 3000°C |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Refractive Index (nd) | no=1.768 |
| ne=1.76 |
| dn/dt | 13×10-6/K(@633nm) |
| Tranmission | T≈80%(0.3~5um) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
Applications

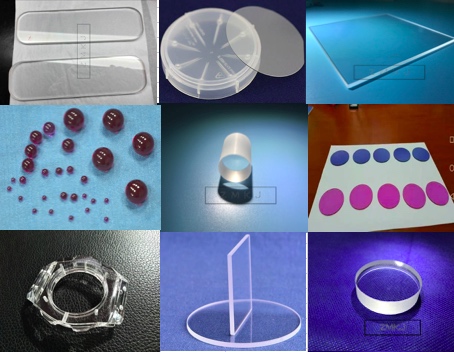

Sapphire Washers, sapphire blade,Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes,
Ruby sapphire wafer, Sapphire insulation Film, Sapphire ball lens,
Sapphire/ruby ball,LED epi-ready wafer ,Sapphire submount for cooling,windows in Low temperature
lab,sapphire cover lens for camera and fingerprint identification.sapphire Micro-Organism Culture Dish in low temperature.
New Applications for Sapphire: Medical
New industries are finding man-made sapphire a desirable material.
The field of medicine is looking
at sapphire for its optical transmission range, durability and
chemical inertness for bio-compatibility.
Sapphire’s optical properties and durability offer advantages for
specific medical laser applications in dermatology, ophthalmology
and dentistry. Sapphire is widely used in surgical systems for its
laser transmission, high resistance to heat and non-thrombogenic
properties (meaning it doesn’t promote clotting). It is used as a
laser window for endoscope lenses, laser hair removal systems and
blood cell counters. In addition, sapphire products are used for
surgical tools, implants, braces. Sapphire microscalpels are
transparent blades that make it easier to visualize and illuminate
capillary vessels, nerves, cutting zones and cutting depth compared
with traditional metal alternatives.
One area that has potential for sapphire is in artificial joint
replacements. Many joint replacements include metal, ceramic,
metal-polymer and ceramic polymer endoprosthesis.This is an area
that may develop friction and wear over time causing the joint to
fail. Endoprostheses made of metal and ceramics may interact with
the body and also degrade from friction over time. For example,
metal-on-metal artificial hips have a lifetime of 15 to 30 years,
but have been known to fail earlier. Sapphire is attractive for
endoprostheses for its bio-compatibility since it is chemically
inert and won’t react with the body as well as its low friction
coefficient, hardness and durability.
