    5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

    Ask Lasest Price
    Brand Name : zmsh
    Model Number : wafer-5inch R
    Price : by case
    Supply Ability : 100pcs/months
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    5 Inch Dia 125mm Sapphire Substrate 9.0 High Hardness 99.999% Al2O3 Material

    5inch R-plane sapphire wafer,dia125mm sapphire substrates ,6inch C-axis double side polished sapphire wafer for led epi-ready,sapphire substrates, Al2O3 crystal optical lens



    5inch Specifications


    Material: Single crystal Al2O3 99.999%
    Diameter:125.00±0.1mm
    Thickness :1000±25um
    Primary flat:42.5±2.5mm
    OF Orientation flat: C±0.1°C-plane(0001)
    Orientation: R±0.1°Or A-plane,M-plane
    Frontside Surface Roughness:Ra<0.3nm
    Backside Surface Roughness: 0.8~1.2um
    Or double side polished
    TTV:<20um
    BOW:-25~0um
    WARP:<30um
    Laser Mark Series No. by needs
    Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment
    Cleanliness :Free visible contamination


    Produce step for saphire wafers


    Sapphire crystal body--->get rough ingot in customized axis--->cut tail& top off---->

    repair diameter shape----> Grind OF surface--->( anneal -->)wire cut--->chamfer-->anneal--->lapped---polished---infection


    Synthetic sapphire—sometimes referred to as sapphire glass—is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant.

    The key benefits of sapphire windows are:

    Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
    Significantly stronger than other optical materials or standard glass windows
    Highly resistant to scratching and abrasion
    Extremely high melting temperature (2030 °C)

    -------------------------------------------------------------------------------------------------------------------------------------------

    We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.



    Some other materials semi substrates also can be provided as like sic, GaN,LaAlO3,LiTaO3 etc.

    5inch product pictures

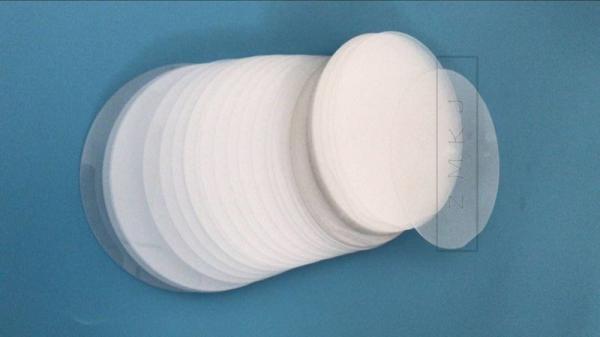

    picture is 5inch as-cut wafer


    FAQ:


    Q: What's your MOQ?

    A: (1) For inventory, the MOQ is 10pcs.

    (2) For customized products, the MOQ is 25pcs up.


    Q: What's the way of shipping and cost?

    A:(1) We accept DHL, Fedex, EMS etc.

    (2) If you have your own express account, it's great.If not,we could help you ship them.

    Freight is in accordance with the actual settlement.

    Q: How to pay?

    A:50%deposit, left before delivery T/T,

    Q: Can I customize the products based on my need?

    A: Yes, we can customize the material, specifications and optical coating for your optical

    components based on your needs.


    Q: What's the delivery time?

    For inventory: the delivery is 5 workdays after you place the order.

    For customized products: the delivery is 2 or 3 weeks after you place the order.


    Q: Do you have standard products?

    A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.
