    Laser Projection Display Gallium Nitride GaN Wafer 350um Thickness

    Ask Lasest Price
    Brand Name : zmkj
    Model Number : GaN-2INCH
    Price : by case
    Payment Terms : L/C, T/T
    Delivery Time : 2-4weeks
    • Product Details
    • Company Profile

    Laser Projection Display Gallium Nitride GaN Wafer 350um Thickness

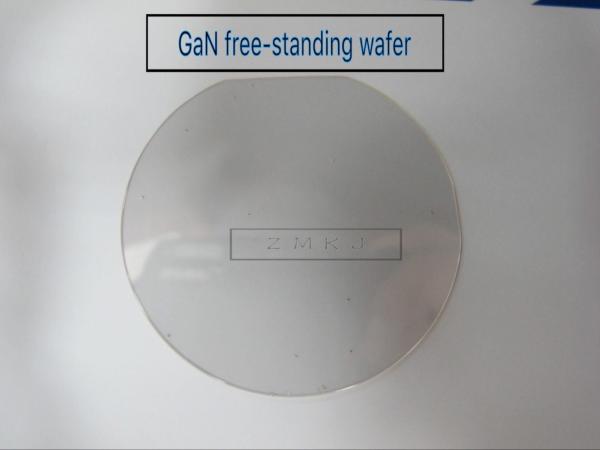

    2inch free-standing GaN substrates,GaN wafer for LD,semiconducting Gallium Nitride Wafer for led,GaN template,10x10mm GaN substrates, native GaN wafer,


    1. III-Nitride(GaN,AlN,InN)

    Forbidden band width (light emitting and absorption) cover the ultraviolet, visible light and infrared.


    GaN can be used in many areas such as LED display, High-energy Detection and Imaging,

    Laser Projection Display, Power Device, etc.


    Specifications:

    ItemGaN-FS-N
    DimensionsФ 50.8mm ± 1mm
    Marco Defect DensityA Level≤ 2 cm-2
    B Level> 2 cm-2
    Thickness300 ± 25 µm
    OrientationC-axis(0001) ± 0.5°
    Orientation Flat(1-100) ± 0.5°, 16.0 ± 1.0mm
    Secondary Orientation Flat(11-20) ± 3°, 8.0 ± 1.0mm
    TTV(Total Thickness Variation)≤15 µm
    BOW≤20 µm
    Conduction TypeN-type
    Resistivity(300K)< 0.5 Ω·cm
    Dislocation DensityLess than 5x106 cm-2
    Useable Surface Area> 90%
    Polishing

    Front Surface: Ra < 0.2nm. Epi-ready polished

    Back Surface: Fine ground

    PackagePackaged in a class 100 clean room environment, in single wafer containers, under a nitrogen atmosphere.

    2. Our Enterprise Vision

    we will provide high quality GaN substrate and application technology for the industry.

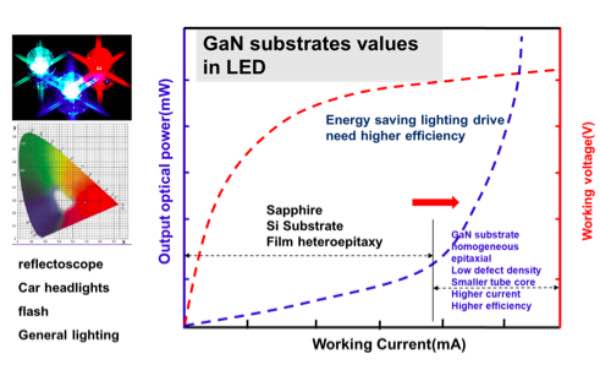

    High quality GaNmaterial is the restraining factor for the III-nitrides application, e.g. long life
