    Fe+ doped 6INCH lINbO3 Lithium Tantalate Wafers LiTaO3 Single Crystal Materials

    Ask Lasest Price
    Brand Name : zmkj
    Model Number : LT-6inch
    Price : by case
    Supply Ability : 5000pcs/month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

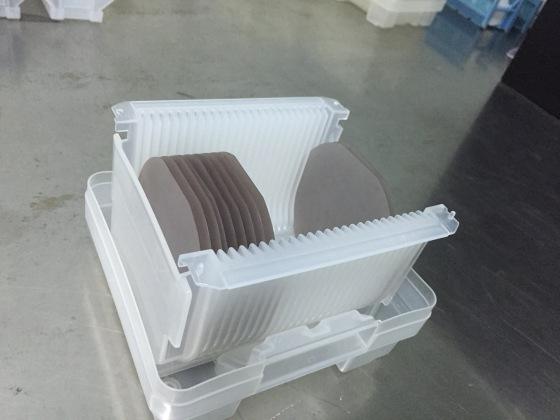

    Fe+ doped 6INCH lINbO3 Lithium Tantalate Wafers LiTaO3 Single Crystal Materials

    Lithium Tantalate crystal 6inch dia150mm LiTaO3 LT wafer ingot, lithium niobate crystal LiNbO3 substrates wafer for saw

    Piezoelectric Crystal Lithium Tantalate LT LiTaO3 crystals
    Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.

    PropertiesLiTaO3(LT)
    Type of MaterialSingle Crystal
    Crystal StructureTrigonal,a = 5.154, c = 13.784Å
    Melting Point1650℃
    Curie Temperature607℃
    Transmission Range400 – 5000 nm
    Absorption edge270nm
    Absorption loss< 0.15 %/cm @ 1064 nm
    Refractive Indexno=2.176,ne=2.180(at 0.633 µm)
    no=2.131,ne=2.134(at 1.2 µm)
    Density7.45g/cm3
    Thermal Conductivity8.78x 10-7 m2/sec
    Optical homogeneity~10-5
    Hardness (Mohs)5
    Elastic CoefficientCE11 2.33(X 1011 N/m2)
    CE33 2.77(X 1011 N/m2)
    Dielectric Constantε11/ε0 52.7
    ε33/ε0 44.5
    Solubility in Waterinsoluble in water
    NLO Coefficientsd33 = 13.8 pm/V
    d22= 2.4 pm/V
    d11= 0.85 pm/V
    Electro-Optic Coefficientsr31 =8.4 pm/V, @633nm
    r22 =20 pm/V, @633nm
    r33 =30.5 pm/V, @633nm
    Damage Threshold2 MW/cm2@532nm
    Standard Diameter

    dia150x50mm

    Feature Piezoelectric Crystal LiTaO3 crystals

    Excellent photoelectric property
    High Damage Threshold
    High Curie Temperature


    Specification for Saw grade


    Orientation

    36°Y-cut±0.2°42°Y-cut±0.2°X-cut±0.2°
    Diameter100±0.3mm ,150±0.5mm
    1st OF Flat

    22±2mm,32±2mm,47.5±2mm
    perpendicular to X-axis±0.2°

    22±2mm,32±2mm,47.5±2mm perpendicular to 112°Y±0.2°
    2st OF Flat10±2mm CW270°from 1st OF10±2mm CW315°from 1st OF10±2mm CW315° Or 270°from 1st OF
    Thickness200~250±25um for3-4inch,,300-350±25um, 500±25um(6inch)
    Front surface"+",Ra<1nm,
    Back surfaceGC#1000, GC#2000 Lapped
    LTV<1um,at5x5mm zone
    BOW≤25um


    Piezoelectric Crystal LiTaO3 crystals

    SpecificationConventionalHigh Precision
    MaterialsLiTaO3(LT)LiTaO3(LT)
    OrientationX-112°Y,36°Y,42°Y±0.5°X-112°Y,36°Y,42°Y±0.5°
    Parallel30″10''
    Perpendicular10′5'
    surface Quality40/2020/10
    Wavefront Distortion

    λ/4@632nm

    λ/8@632nm

    Surface Flatness

    λ/4@632nm

    λ/8@632nm

    Clear Aperture>90%>90%
    Chamfer<0.2×45°<0.2×45°
    Thickness/Diameter Tolerance±0.1 mm±0.1 mm
    Maximum dimensionsdia150×50mmdia150×50mm





    FAQ

    Q1. Is your company a factory or trade company?
    We have a factory that process many type crystal into wafers by customized

    Q2. Could you supply sample?
    Yes,we can supply sample according to customer's requirement by FOB.
    Q3. Do you have any stock of wafer or ingots?
    We process many size wafer and lens according to customer requirement.
    So we have few size in stock if it's commen specification.
    commen size as like 3inch,4inch 0.3mm substrates and ingots are in stock
    Q4.Where is your company located?
    Our company located in shanghai,China. factory is in wuxi city.
    Q5. How long will take to get the products?
    Generally it will take 1~3 weeks to process and then delivery .
    It is depend on the quantity and the size of the products.
