2 / 3 Inch Sapphire Parts , Sapphire Substrate 0.4mm Thickness High Working Temperature

Product Categories

SHANGHAI FAMOUS TRADE CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

2inch 3inch 0.43mm single side polished SSP 0.4mm DSP thickness sapphire Al2O3 crystals substrate wafers for epi-ready,

other size as like 2inch ,3inch ,4inch ,5inch ,6inch ,8inch ,10inch and customized size sapphire wafer ＆ optical lens also can be provide.

Sapphire Substrate Features

Sapphire Substrate Application

Common Size For Wafer ＆ Optical Lens

Item	2″ 50.8mm 3inch 76.2mm
Crystal	LED Grade Sapphire
Sapphire Purity	≥99.9996%
Color	Transparent
Orientation	C plane tiled M axis 0.20°±0.1°
Diameter	50.8±0.1mm 76.2±0.1mm
Thickness	430±10um or 400±10um
Primary Flat location	A-axis±0.2°
Flat length	16.0±1mm 22±1mm
Front Side Surface	Mirror polished , EPI Ready
Surface Roughness	Ra<3A
Back Side Roughness	Fine ground, Ra=1.0±0.2um ( or doule side polised 2sp)
TTV	≤10um
LTV	≤2.5um(8mm*8mm)
BOW	≤- 15um
Warp	≤15um

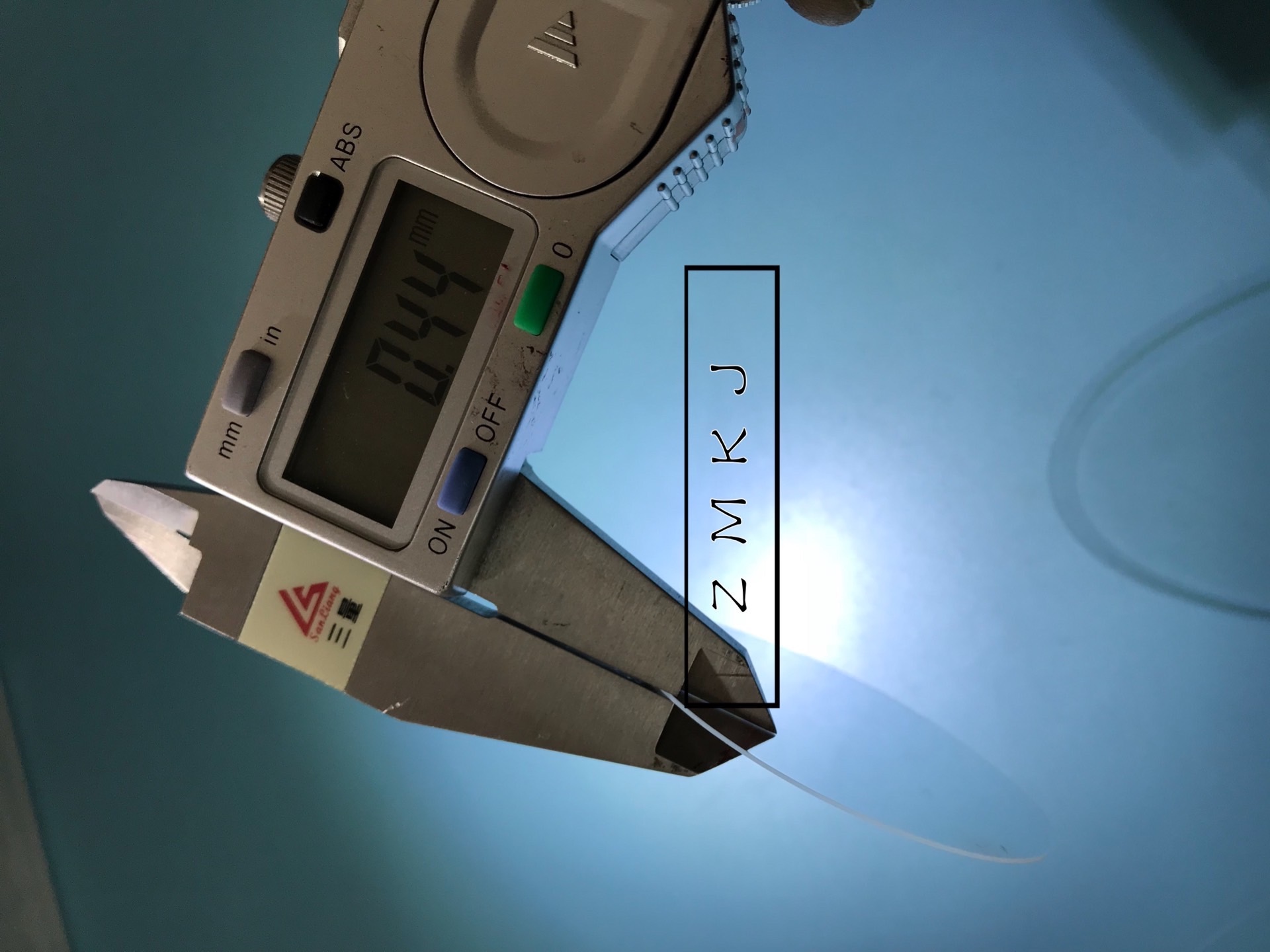

Sample products in details

Inspection Date
