Titanium doped Sapphire (Ti3+:Al2O3 or Ti:Sapphire) is the most widely used crystal for wavelengths tunable lasers. It
combines the excellent thermal, physical and optical properties of
Sapphire with the broadest tunable range of any known material. It
can be lased over the entire band from 660 to 1100 nm. Frequency
doubling provides tunability over the blue-green region of the
visible spectrum.
Ti:Sapphire crystals are active media for highly efficient tunable
solid-state lasers. They demonstrate good operation in the
pulsed-periodic, quasi-CW and CW modes of operation. Ti:Sapphire is
a 4-level, Vibronic laser with fluorescence lifetime of 3.6 µm. The
peak of the absorption band is 490 nm which makes it an excellent
material for pumping with a variety of sources operating in the
green-argon ion, copper vapour, frequency-doubled Nd:YAG, and dye
lasers are routinely used. Crystals have also been flashlight
pumped by lamps designed to allow short fluorescence lifetime.
These factors and broad tunability make it an excellent replacement
for several common dye lasing materials. The crystals are grown
using the Czochralsky and the Ciropolous techniques.
MATERIAL PHYSICAL AND LASER PROPERTIES:| Chemical formula | Ti3+:Al2O3 | | Crystal structure | hexagonal | | Lattice parameters, Å | a = 4.748; c = 12.957 | | Refractive indexes | np = 1.759; nm = 1.767 | | Birefrigence | 0.0082 | | Density, g/cm3 | 3.98 | | Mohs hardness | 9 | | Thermal conductivity at 25°C, W x cm-1 x °K-1 | - | | perpendicular to c-axis | 0.35 | | parallel to c-axis | 0.33 | | Specific heat at 18°C, J x kg-1 x °K-1 | 761 | | Thermal expansion coefficient (20 - 100°C) | - | | perpendicular to c-axis | 4.78 x 10-6 x °K-1 | | parallel to c-axis | 5.31 x 10-6 x °K-1 | | Syngony | triangular | | Axial characteristic | uniaxial |
Rods with round cross-sections and slabs are manufactured:| Tuning range, nm | 680 - 1100 | | Pumping range, nm | 450 - 532 | | Ti dopant concentration, at.% | 0.02 ÷ 0.35 | | Absorption coefficient at 510 nm, cm-1 | 0.5 ÷ 2.5 | | FOM | >200 | | Orientation | 90° to c axis | | Geometry | flat-flat / Brewster | | Endsunparallelity | 10" | | Flatness | 0.2 | | Orientation tolerance | < 5° | | Broadband AR coatings, % | < 0.2 | | Diameter, mm | (3 ÷ 40) ± 0.1 | | Length, mm | (10 ÷ 140) ± 0.5 |
We supply rods and slabs with different cross-sections, dimensions
and coatings. Different dopant compositions with different
concentrations are available for specific customer requirements. |
Sample in details

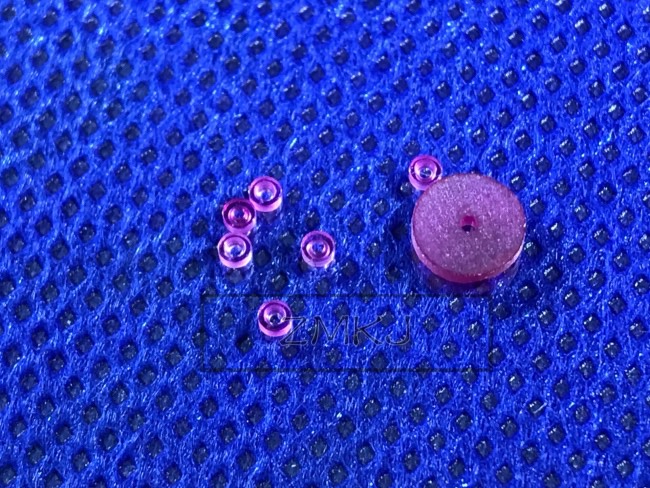

Pictures sample size
Grade: optical grade without bubble,
size:(pictures sizes)dia5x30mml rod ,dia5xdia3xT1.5mmt
Orientation:C(0001)±0.5°,
surface:polished/lapped either ok
color grade:(picture)block5#, ingot 2#,
bule color: just one color grade
FAQ:
Q1. Is your company a factory or trade company?
We have a factory and we also can do export ourself.We are the
Sapphire Window manufactuer.
Q2.Is you company only work with sapphire business?
no,at present our company work with sapphire business and other
semiconductor materials
as like sic, LT,GaAs. but We process sapphire components and Ruby
components as the center
of gravity at present.
Q3. Could you supply sample?
Yes,we can supply sapphire sample according to customer's
requirement.
Q4. Do you have any stock of sapphire window?
We process sapphire window according to customer requirement.So we
have few sapphire
window in stock.
Q5. Where is your company located?
Our company located in shanghai,China. factory is in Wuxi city.
Q6. How long will take to get the products?
Generally it will take 2~4 weeks to process.It is depend on the
quantity and the size
of the sapphire products.
