1. About Specifications Decribtion
Sapphire and Ruby ball lenses are both made from Al203. Ruby or
Ruby-Doped sapphire owes its red color to traces of chromium oxide
(chromium content for ruby balls is typically >0.5%). While
their physical and chemical properties are basically the same,
their optical properties are somewhat different. Sapphire has
superior optical transmission qualities. Ruby Balls are easier to
see and therefore easier to handle for physical applications.
Grade: optical grade without bubble,

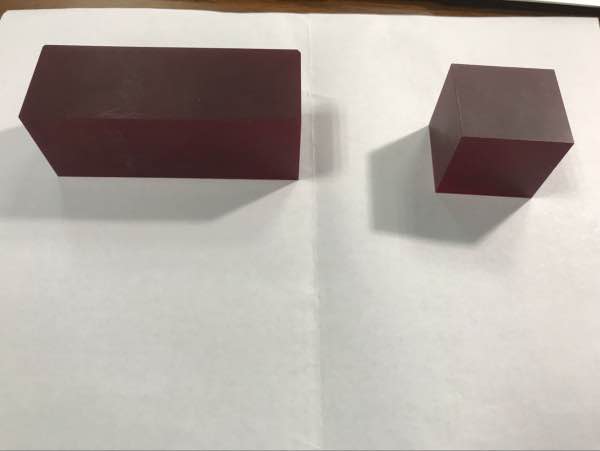

size:(pictures sizes)40x40x50mml,dia100x20mmt,(dia1~100mm ok)
Orientation:C(0001)±0.5°,
surface:polished/lapped either ok
color grade:(picture)block5#, ingot 2#,
| Materials | Ti3+:Al2O3 | |
| Concentrations | (0.05~0.35)wt%Ti2O3 | |
| Orientation | A-Axis within 5°,E-vector parallel to C-Axis | |
| End Configuration | flat/flat or Brewster/Brewster ends | |
| Absorption Coefficence | 0.5~6.0cm-1 | |
| Figure of Merit | 100~300 | |
| Coatings | Standard coating is BBAR with R < 5.0% each face at 532 nm and R
< 0.5% each face, 650 nm to 850 nm.Other coatings available. | |
|
The Advantagement for Ruby Sapphire
- Excellent for Severe Environments
- High Strength and Hardness
- High Chemical Stability
- Sapphire and Ruby Half-Ball Lenses Also Available
Common Specifications
Diameter Tolerance (μm):±2.54
Sphericity (μm): 0.64
Diameter :dia3mm,dia5mm,dia8mm,dia10mm,dia20mm,dia50mm,dia100mm
we also provide other commen size sapphire glass lens and wafers
FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we
could help you ship them.
Freight is in accordance with the actual settlement.
Q: How to pay?
A: 100％ T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 25pcs.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the
order.
For customized products: the delivery is 2 or 3 weeks after you
place the order.
(2) For the special-shaped products, the delivery is 4 workweeks
after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical
coating for your optical components
based on your needs.
